Electronic drawings for metal in pdf and dxf format.

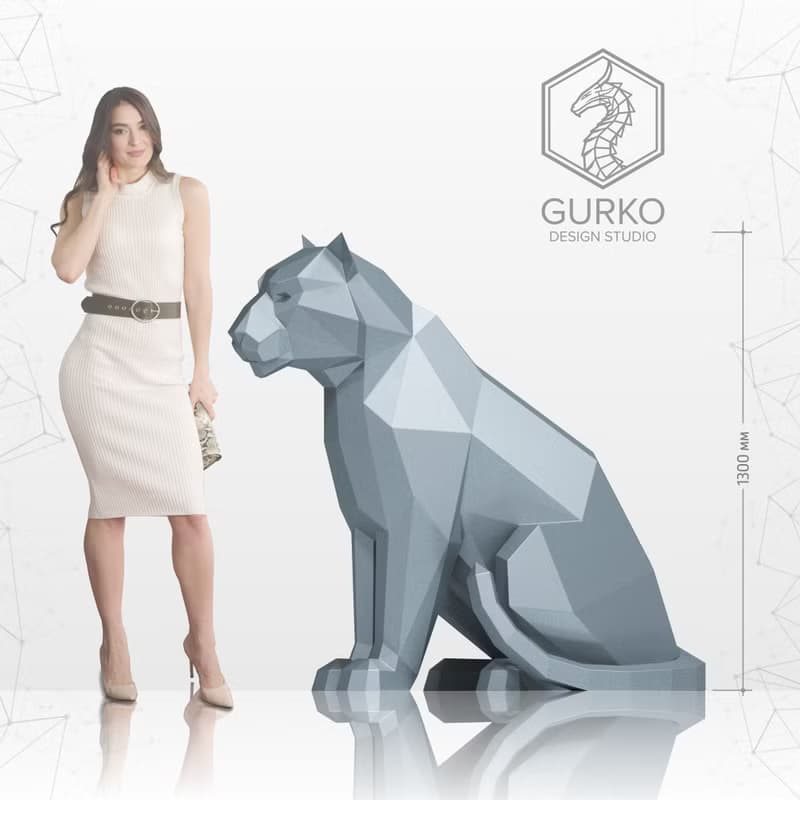

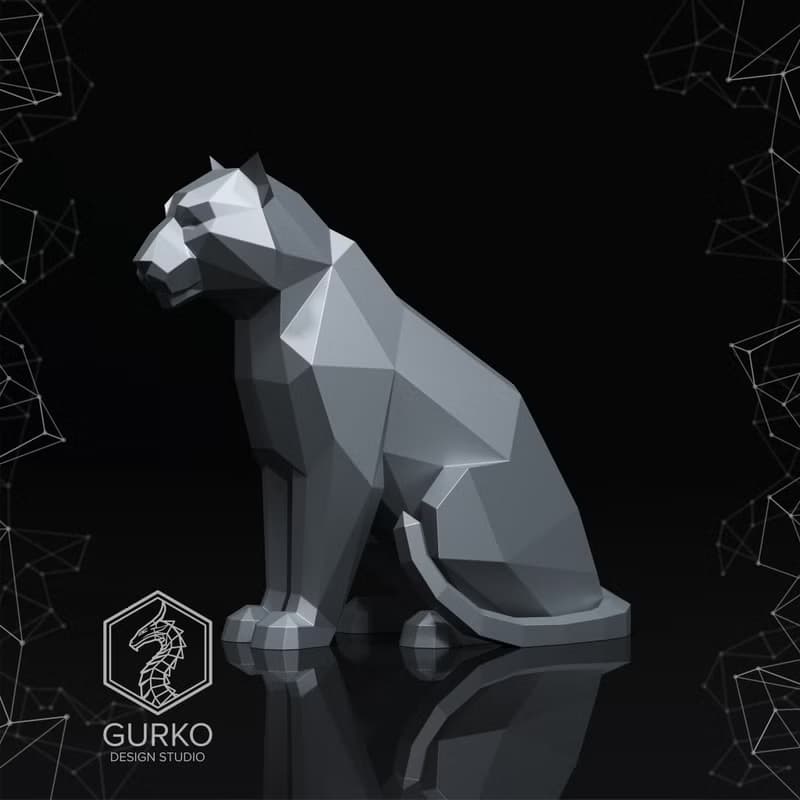

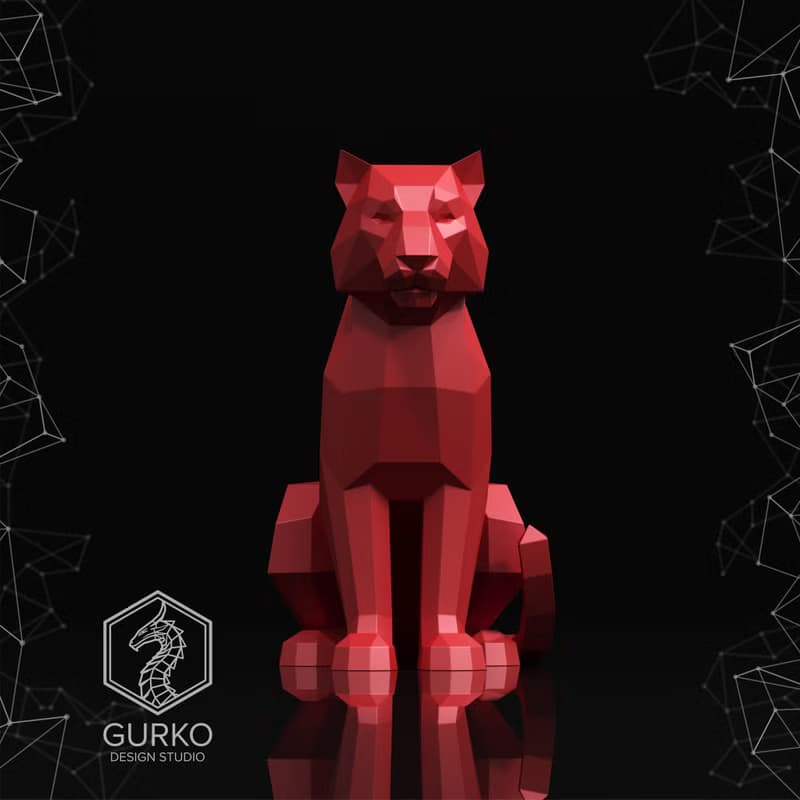

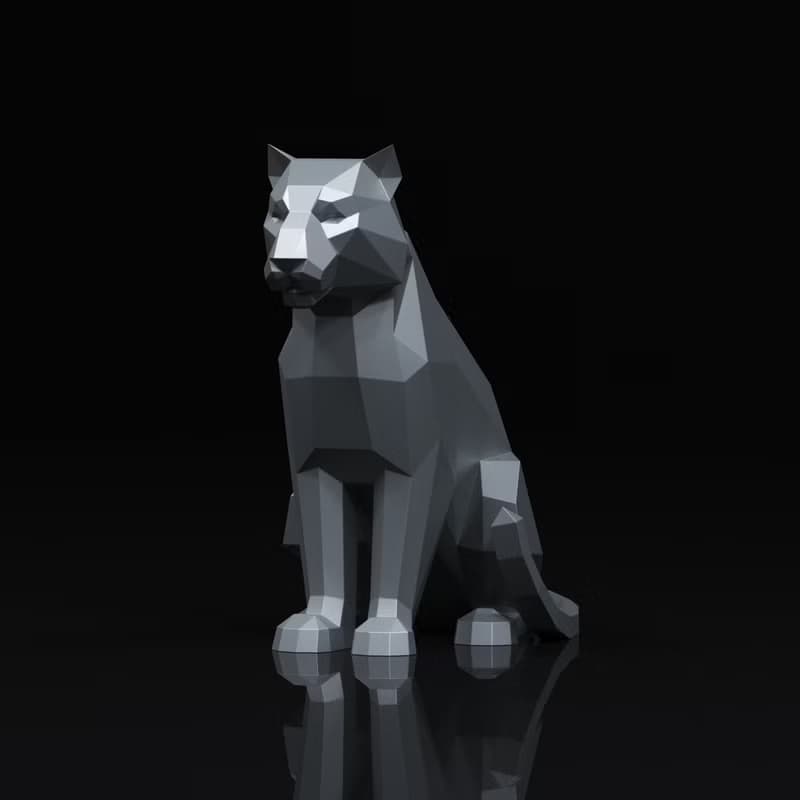

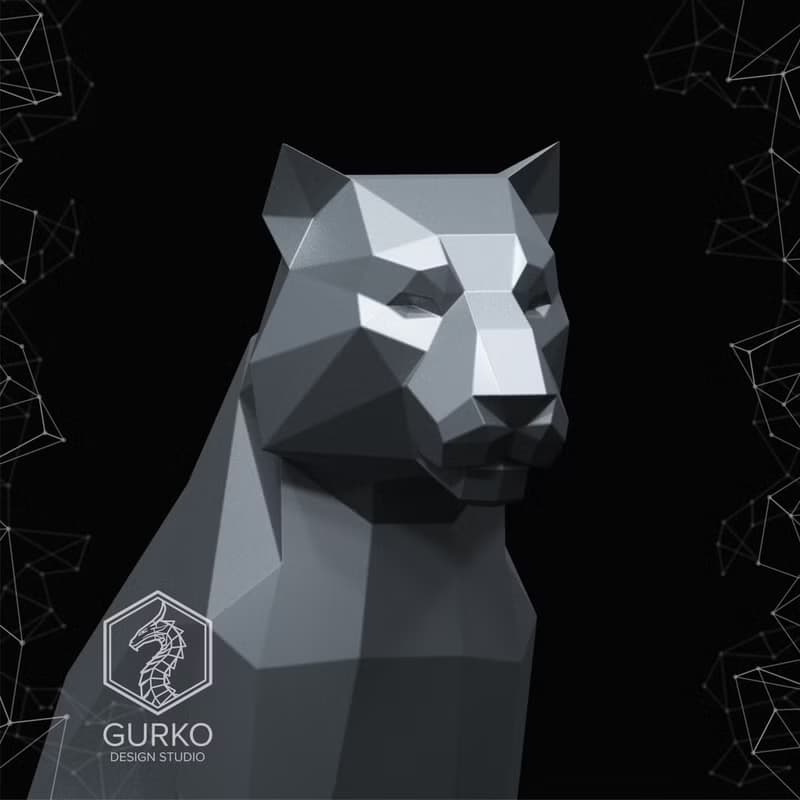

Polygonal model drawings for metal «Sitting Tiger»
1300 х 750 х 1390 mm in size.
The model consists of 94 parts 2 sheet of 1250x2500 mm format.
1) Pdf drawings
The electronic instructions include step-by-step assembly instructions, drawings with bend angles and drawings with face numbering.
2) Electronic drawings in dxf format
The drawings are executed on a sheet of 1250x2500 mm format. All elements are laid out on separate layers
