Electronic drawings for metal in pdf and dxf format.

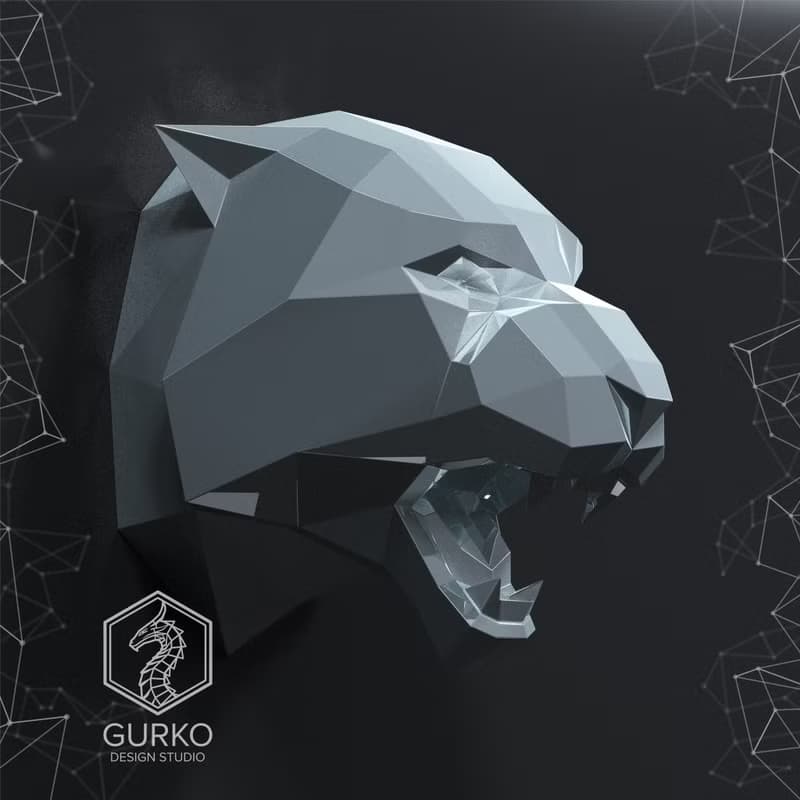

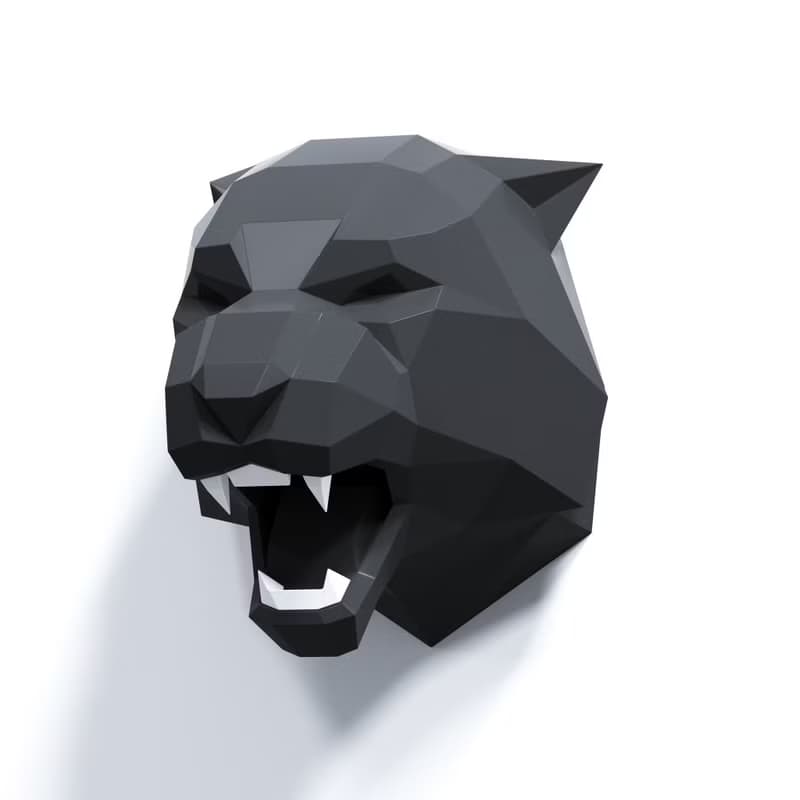

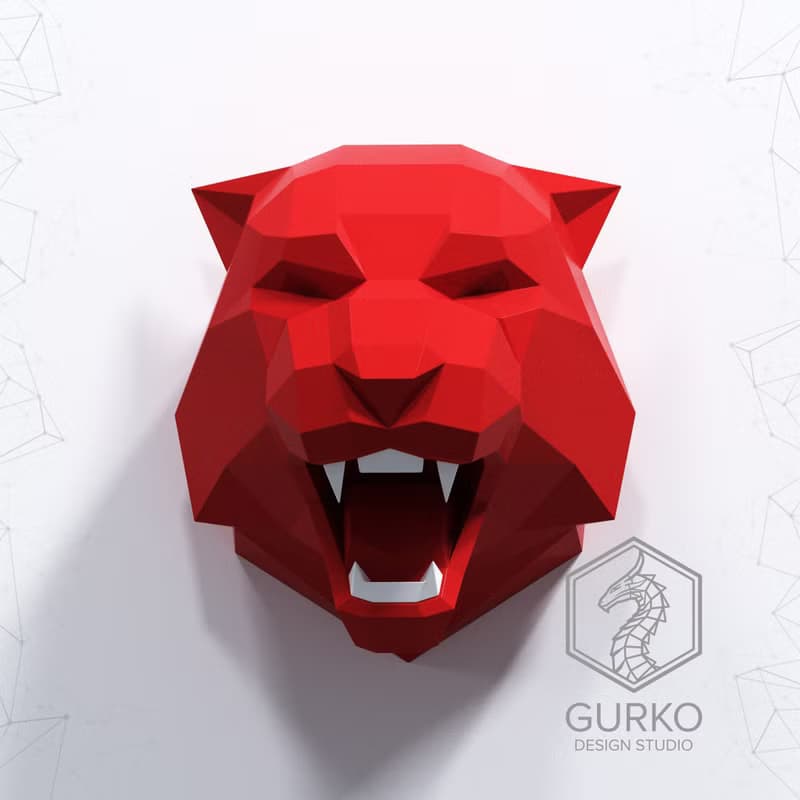

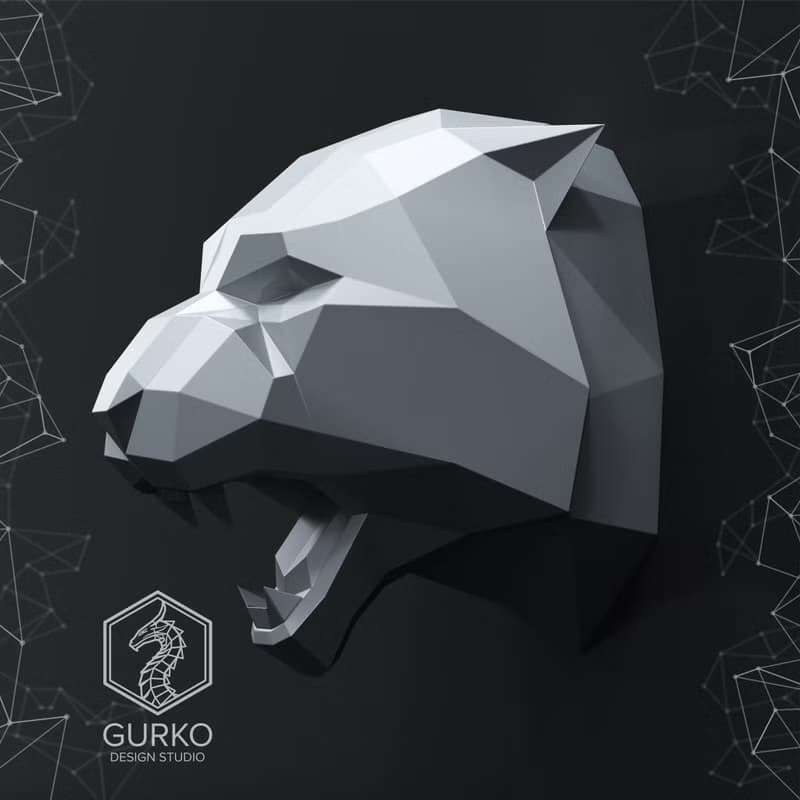

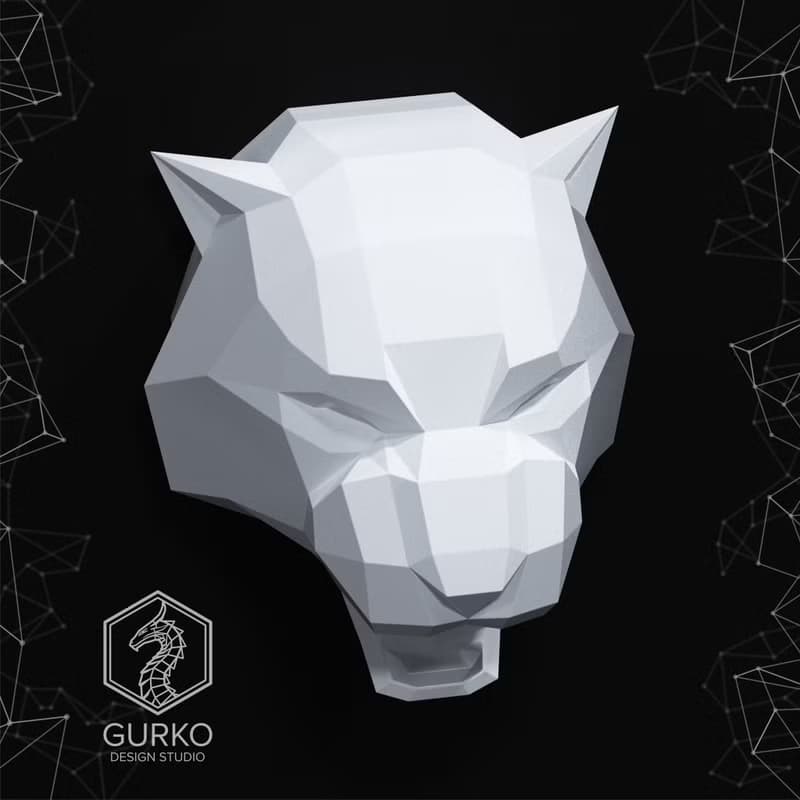

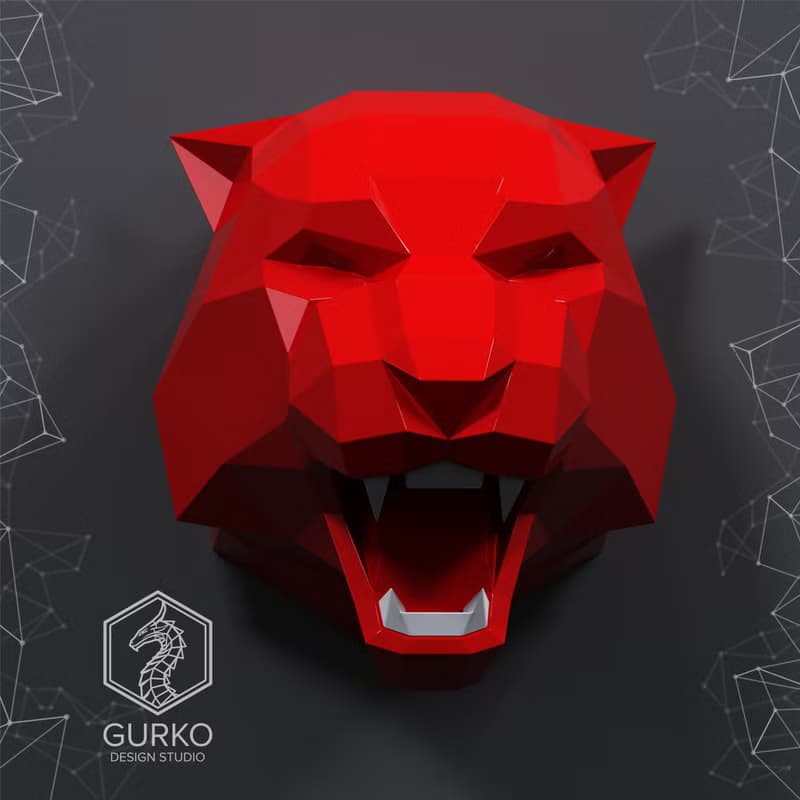

Polygonal model drawings for metal «Angry Tiger Head»
600 х 540 х 540 mm in size.
The model consists of 67 parts 1 sheet of 1250x2500 mm format.
1) Pdf drawings
The electronic instructions include step-by-step assembly instructions, drawings with bend angles and drawings with face numbering.
2) Electronic drawings in dxf format
The drawings are executed on a sheet of 1250x2500 mm format. All elements are laid out on separate layers
